The advantages are obvious:
7 built-in fonts in different sizes (see picture besides). All the character sets can be enlarged up to 4 times their original size. For vertical presentation, a command allows you to rotate them by 90°. Separate character sets such as Cyrillic can be integrated at any time.
Commands like touchkey with menu function, clipboard, bargraph, centered strings...
You can therefore create the screen layout you want with just a few, easily understood commands. All the commands are based on coordinate specifications and can therefore be applied and moved to the nearest pixel.
3 different interfaces (RS-232, I²C, SPI). There is something to match every system: depending on the configuration, the connection can be established via an RS-232 (CMOS level), SPI or I²C bus interface. Also the touch panel communication is done via the same serial interface line.

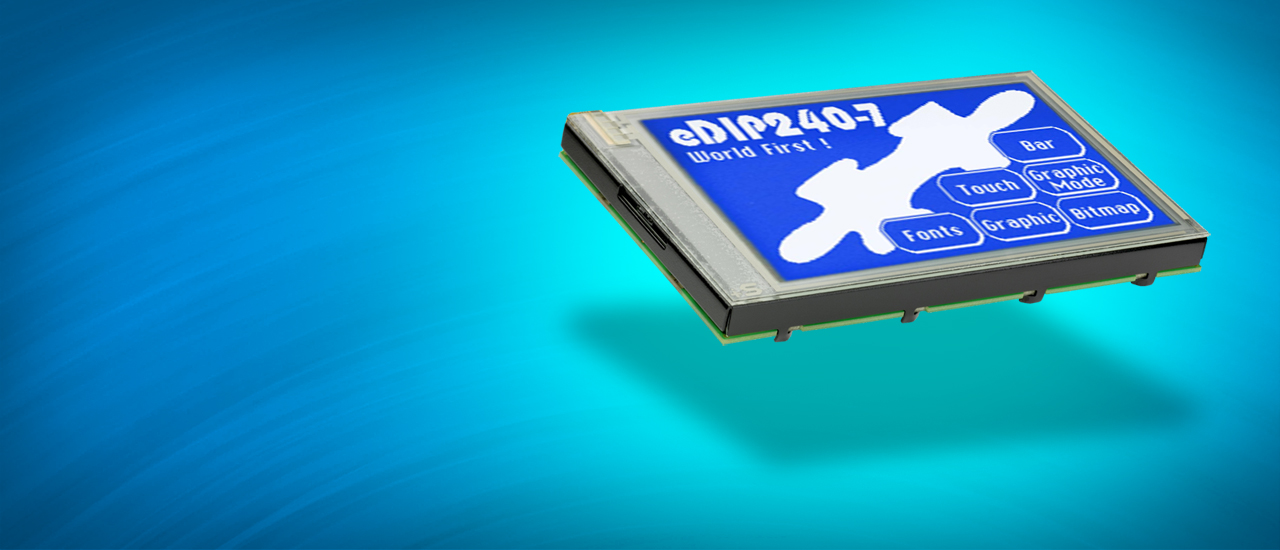

Helpful for the development, but also powerful for 1st. steps is the simulator software for the EA eDIP240-7. With that internal EEPROM can be used to define some pre-defined screen layouts. Software is available for can be downloaded here immediately: LCD Tools for Windows.
Even communication of simulator via serial interface of PC or via terrminal is possible. Thus a complete and elegant development tool is provided for free.
Like all DIP modules, the displays are simply inserted in the PCB and soldered in place. No screws, distance sleeves or cables are required, thus saving material costs and simplifying construction. This results in a saving of between 2 and 4 minutes per module during assembly!
The displays EA eDIP320-8 and EA eDIPTFT43-A do come with additional mounting clips for easy screw mounting.
Optionally, we can also supply this display with an analog touch panel which can be used for all types of input. An integrated touch controller is responsible for representing and labelling the keys as well as for their interpretation. What is more, the shape, size and number of the keys can be modified whenever required at runtime. This permits a clear, well-organized screen layout that helps eliminate operating errors.
Device adaptations for foreign countries and languages are simple to implement even in tiny runs thanks to the variable labelling. This includes cyrillic and arabic.
A most modern technology provides a power consumption of less than <1W only (EA eDIPTFT70-A: 3.5W) - under full functionality! Reducing the backlight brightness reduces the power consumption once more. And even if the display was switched off totally, it runs within a few 1/10 seconds again. If the external components are not immediately running, then an automatic start screen can be stored in internal FLASH.
The starter packages does contain everything to get very fast and easy familiar with them:
Control Units, Monochromes | |||||||
| Ordering Code | Dimension | Display Color | Touchpanel | Data Sheet | Shop | Starterpackage / USB- Evalset | |
| EA eDIP128B-6LW | 2.8" | 72x55x12mm | blue-white |  | EA EVALeDIP128-240 | ||
| EA eDIP128B-6LWTP | resistive | ||||||
| EA eDIP128W-6LW | black&white | ||||||
| EA eDIP128W-6LWTP | resistive | ||||||
| EA eDIP160B-7LW | 3.2" | 82x68x12mm | blue-white |
| |||
| EA eDIP160B-7LWTP | resistive | ||||||
| EA eDIP160W-7LW | black&white | ||||||
| EA eDIP160W-7LWTP | resistive | ||||||
| EA eDIP240B-7LW | 4.2" | 113x70x11mm | blue-white |
| |||
| EA eDIP240B-7LWTP | resistive | ||||||
| EA eDIP240J-7LW | black&white | ||||||
| EA eDIP240J-7LWTP | resistive | ||||||
| EA eDIP240J-7LA | black-amber | ||||||
| EA eDIP240J-7LATP | resistive | ||||||
| EA eDIP320B-8LW | 5.7" | 138x105x10mm | blue-white | | EA STARTeDIP320 | ||
| EA eDIP320B-8LWTP | resistive | ||||||
| EA eDIP320J-8LW | black&white | ||||||
| EA eDIP320J-8LWTP | resistive | ||||||
| EA eDIP320J-8LA | black-amber | ||||||
| EA eDIP320J-8LATP | resistive | ||||||
