EA KIT series - Controls Panels

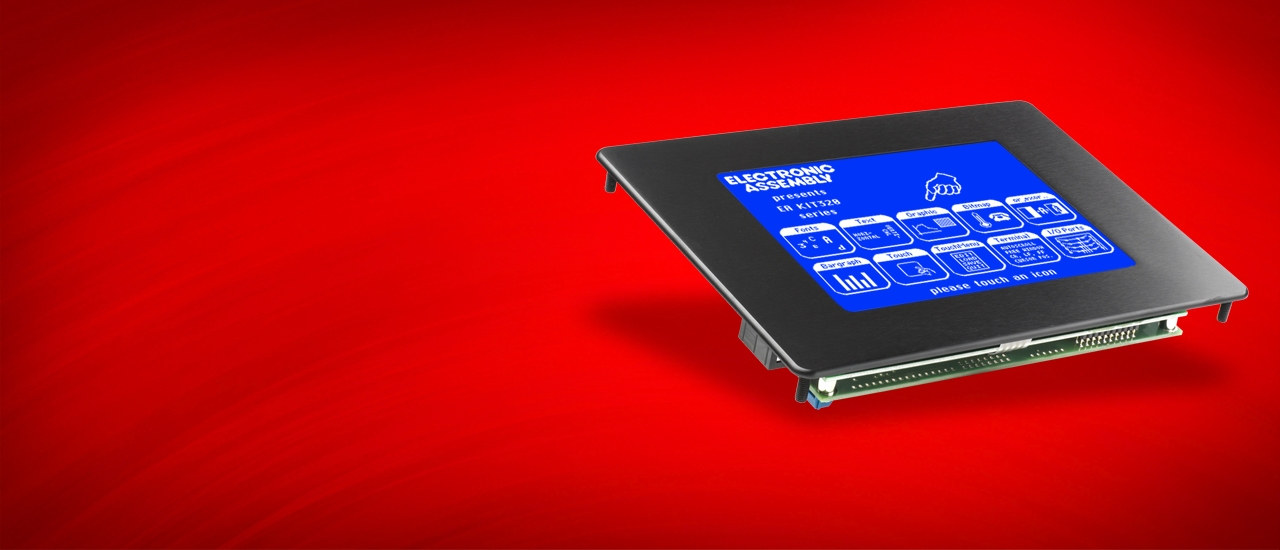

The EA KIT120-5LEDTP graphics kit (see photo above) is a fully assembled control from 2,4" to 5,9" and operating unit with a variety of integrated functions. As well as offering excellent super-twist contrast, the compact display can be put into operation immediately. It is controlled via the standard RS-232 or RS-422 interface. In addition to complete graphics routines for display output, the graphics kit also contains a wide variety of fonts.
High-level language-type graphics commands are used for programming. There is no longer any need for the time-consuming programming of character sets and graphics routines. There's no need for any driver software or programming tools. The ease of use offered by macros and input via touch panel make it a real power display. Have a look at the colored flyer!

The graphics kit is designed to work with an operating voltage of +5V. A supply voltage of +9..36 V is also possible. Serial asynchronous data transfer is carried out in RS-232 or RS-422/RS-485 format. The transmission format is set permanently to 8 data bits, 1 stop bit and no parity. Baud rates between 1200 bps and 115,200 bps can be selected by means of DIP switches. RTS and CTS handshake lines are available.

The display is programmed by means of commands such as "Draw a rectangle from (0,0) to (64,15)". No additional software or drivers are required. Strings can be placed with pixel accuracy. Text and graphics can be combined at any time. Up to 16 different character sets can be used. Each one can be zoomed from 2 to 8 times. When the 8-times zoom is used with the largest character set (16x8), the words and numbers displayed fill the screen (= 128x64). By using internal macros, longer command strings can be defined quickly and easily. Compiler software is required for macro programming (see below).

• Front panel for mounting (EA KIT129-6, KIT160-7, KIT240-6 and -7, KIT320-8)
  A front panel made of anodized aluminum is available as an accessory. This allows the graphics kit to be mounted without any screws visible. Fitting it couldn't be simpler. The EA 0FP240-7 front panel is available in the color black (SW). You will find the dimensions and a photograph here.
• Software for more fonts, pictures and macro creation: the ELECTRONIC ASSEMBLY LCD-Tools
  - editor, compiler, simulator, examples, demos
• Cable for PC
  To enable simple connection to PCs (macro programming), we provide a 1.5m cable and a 9-pin SUB-D female connector (EA KV24-9B). Simply insert it into COM 1 or COM 2 and get started. Note: The cable is not suitable for the RS-422 version EA OPT-RS4224.
