- 128x64
- 160x104
- 240x128

- 320x240
- 7" / 5.7" / 4.3" / 3.2" TFT


This is how graphics programming will look in the future: no more "pixel programming" but, instead, efficient operation with extensive drawing functions and fonts. The advantages are obvious:

• no time-consuming graphics programming
• drastically reduced time-to-market
• tested functions validated hundreds of times
• unparalleled flexibility thanks to powerful commands and a variety of interfaces (RS-232, I²C, SPI)
• extremely compact construction
• all in all a clear price advantage compared to individualized solutions
• information flyer as a pdf file

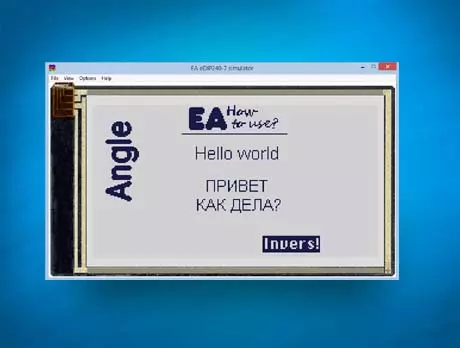

7 built-in fonts in different sizes (see picture besides). All the character sets can be enlarged up to 4 times their original size. For vertical presentation, a command allows you to rotate them by 90°. Separate character sets such as Cyrillic can be integrated at any time.

Such as the touchkey with menu function, clipboard, bargraph, centered strings...
You can therefore create the screen layout you want with just a few, easily understood commands. All the commands are based on coordinate specifications and can therefore be applied and moved to the nearest pixel.
There is a built-in self-test facility for initial testing: simply put the "Test" pin to low.

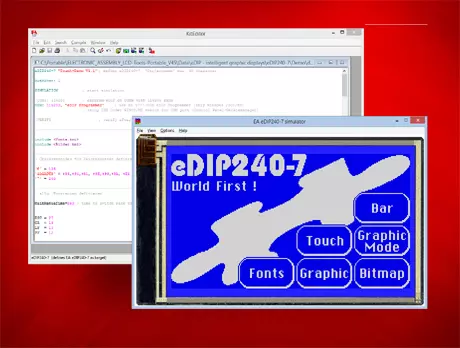

Helpful for the development, but also powerful for 1st. steps is the simulator software for the EA eDIP240-7. With that internal EEPROM can be used to define some pre-defined screen layouts. Software is available for can be downloaded here immediately: LCD Tools for Windows.
Even communication of simulator via serial interface of PC or via terrminal is possible. Thus a complete and elegant development tool is provided for free.

Like all DIP modules, the displays are simply inserted in the PCB and soldered in place. No screws, distance sleeves or cables are required, thus saving material costs and simplifying construction. This results in a saving of between 2 and 4 minutes per module during assembly!
The displays EA eDIP320-8 and EA eDIPTFT43-A do come with additional mounting clips for easy screw mounting.

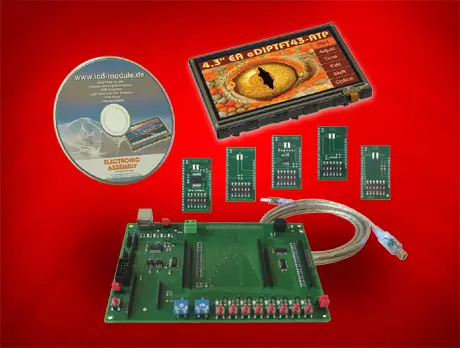

The starter packages does contain everything to get very fast and easy familiar with them:

• TFT Display with Touch Panel
• USB-Programmerboard or USB-Evalboard
• DVD with driver for Windows, Editor, Compiler and Demos: the ELECTRONIC ASSEMBLY LCD-Tools
• Cable and data sheet
• 5 additional interface boards for RS-232, RS-485, I²C and SPI with the EA EVALeDIPxxx
